A backyard addition turned into a six-week delay last spring. Not because of permits. Not because of the weather. The crew dug two feet down and hit standing water, in a spot the plans said would drain fine. Nobody had checked the actual slope of the yard first.

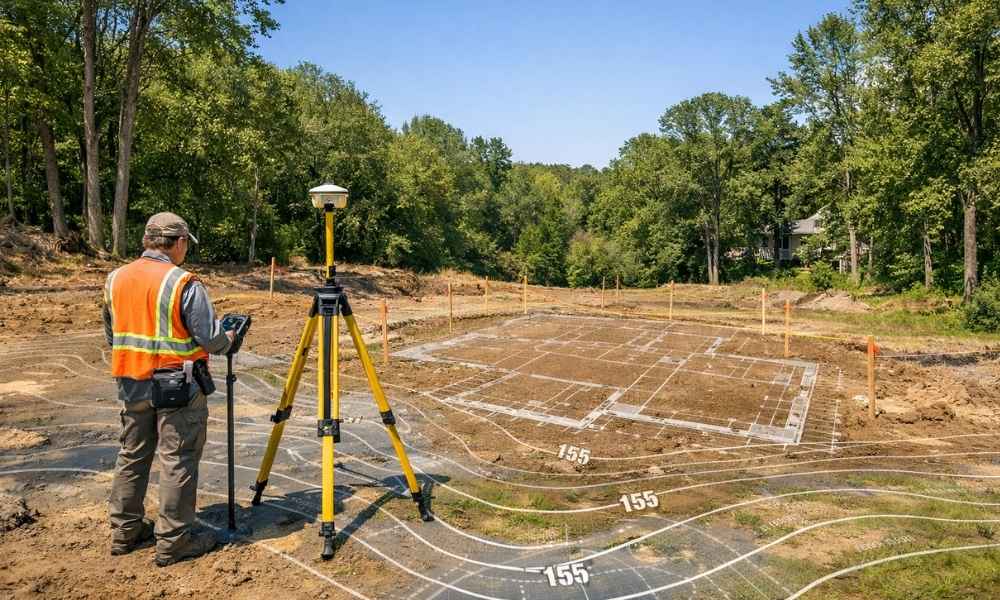

That kind of surprise is exactly what a topographic survey is meant to prevent. It maps the real shape of the land: the high points, the low points, the slopes, and the features sitting on top of it. Before you spend money on design work, it helps to know if this step belongs on your project list.
Signs Your Project Needs a Topographic Survey Before Design Even Starts
Some sites practically announce that they need one.
- Sloped lots. Even a gentle grade changes how water moves and how a foundation sits.
- Drainage concerns. If water pools in one corner of the yard, or a neighbor has complained about runoff, that’s a warning sign.
- Tree-heavy sites. Roots, canopy, and grade changes around trees affect where you can safely build.
- Additions near setback lines. If your new structure is close to a property line or an easement, elevation and grading details matter just as much as the boundary itself.
If none of these apply and your project is small, flat, and simple, you might not need one. But most real construction projects touch at least one of these issues.
Who Actually Requires It: Permits, Lenders, and Design Teams
Property owners are often surprised to learn they don’t get the final say on this.
Municipal planning departments frequently require topographic data before they’ll review a site plan. They want to see how grading and drainage will work before construction starts, not after.
Civil engineers need it too. They can’t calculate stormwater flow, retaining wall heights, or utility slopes without knowing the existing ground elevations first.
Architects use it to make sure a building actually fits the site the way it’s drawn. And on larger commercial deals, lenders sometimes request it as part of their due diligence, especially if flooding or drainage could affect the property’s value.
In short, even if you don’t think you need one, someone reviewing your project probably will.
What Happens When a Project Skips This Step
Skipping a topographic survey rarely saves money. It usually just moves the cost to a worse point in the project.
Here’s what tends to go wrong:
- Permit rejections. Plan reviewers send the project back once they realize the grading data is missing or guessed at.
- Mid-construction redesigns. Crews discover the real slope doesn’t match the drawings, and the design has to change on the fly.
- Drainage disputes. Water ends up flowing onto a neighbor’s property, leading to complaints or legal trouble.
- Change orders. Contractors charge more once actual site conditions force them off the original plan.
Each of these costs more time and money than the survey would have. A missing survey doesn’t remove the problem. It just delays when you find out about it.
Why Online Elevation Data or Satellite Maps Aren’t a Substitute
It’s tempting to pull elevation data from a free online map or a county GIS system. It feels fast and free. But it wasn’t built for construction.
Public elevation data is often only accurate to a few feet vertically. That might be fine for a general planning map. It’s not fine for calculating drainage slope, footing depth, or how much dirt needs to move on site.
A proper topographic survey is typically accurate to fractions of a foot. That level of detail is what engineers need to design something that actually works once it’s built. Free map data simply wasn’t collected at that resolution, no matter how detailed it looks on a screen.
Questions to Ask Before You Order One
A quick call before ordering can save you a second trip and extra cost later. Before you contact a surveyor, have answers ready for:
- What is the project type? A home addition, a subdivision, and a commercial site plan all need different levels of detail.
- What’s the deadline? Permit timelines affect how the survey gets scheduled.
- Who is requesting the survey? An engineer, an architect, or a permitting office may each need slightly different information included.
- What existing documents do you have? Prior surveys, deeds, or site plans can speed up the process and lower the cost.
Walking into that first conversation prepared keeps the scope focused and avoids costly add-ons later.
Frequently Asked Questions
Does a topographic survey also confirm my property boundaries?
No. A topo survey focuses on elevation and surface features. If boundary accuracy matters for your project, that’s a separate scope, usually paired with the topo work rather than replacing it.
How long is a topographic survey good for before it’s considered outdated?
It depends on how much the site has changed. A property with recent grading, tree removal, or new construction nearby may need an updated survey even if the original one is only a year or two old.
Can I use an existing topographic survey from a previous owner or project?
Sometimes. But engineers and permitting offices often require the data to reflect current site conditions. An older survey may need field verification before anyone will accept it.
Is there a project size where a topographic survey isn’t worth the cost?
Small, flat lots with no drainage issues and minor scope, like a simple single-story addition, may not need one. But anything involving grading, stormwater, or municipal review usually does.
Who typically orders the survey: me, my architect, or my contractor?
It varies. It’s most efficient when whoever is leading design orders it early, since the survey becomes the foundation the rest of the plans are built on.
